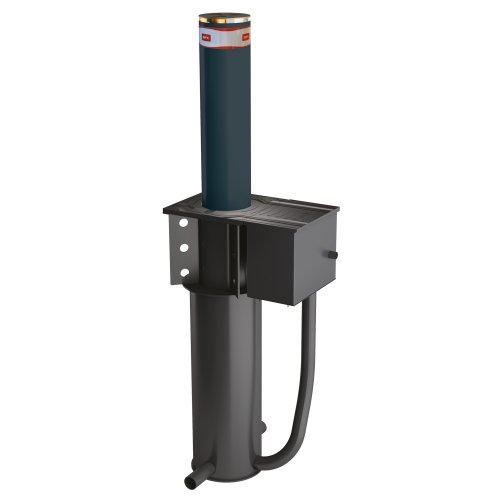

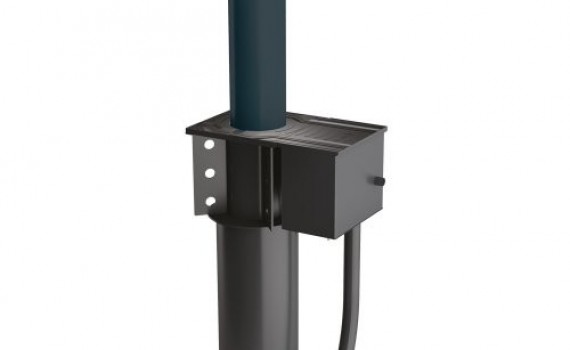

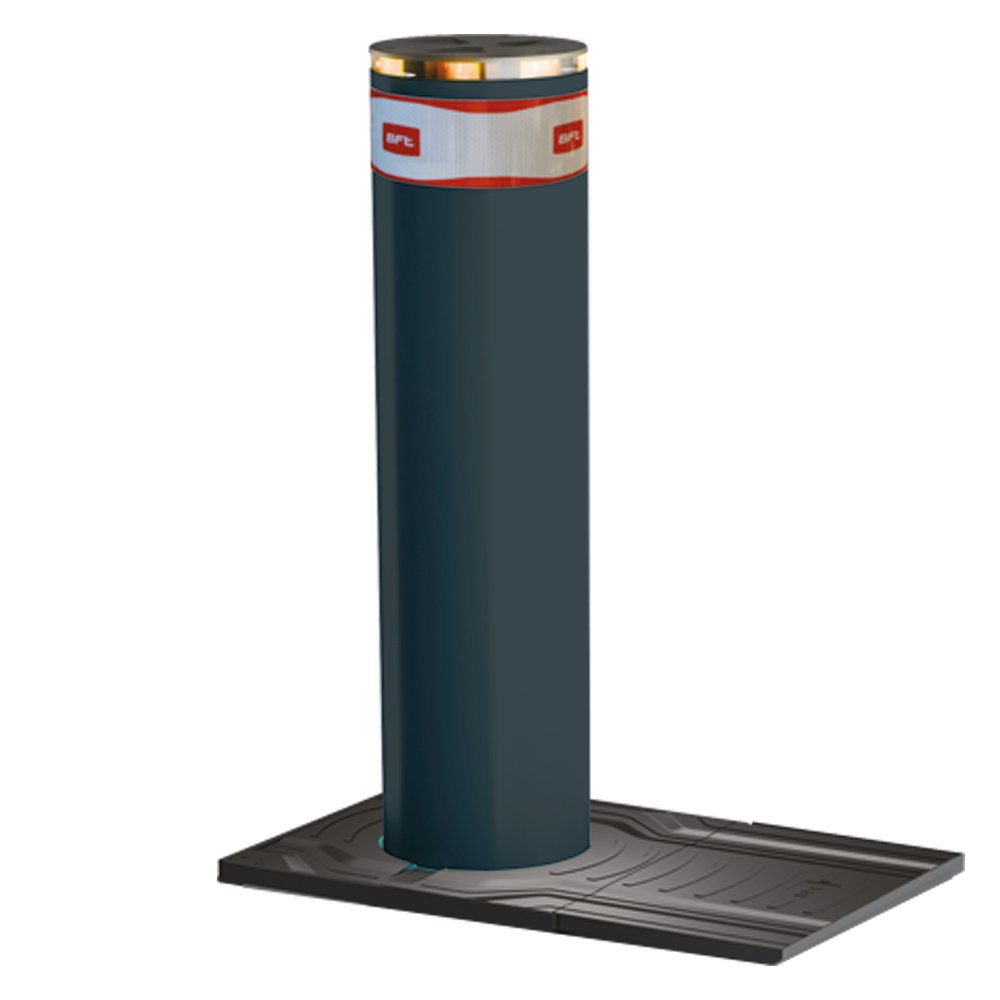

Parking and traffic automatic bollards


Anti-terrorism bollard tested and certified (crash-tested) by an independent company according to standards IWA14-1:2013 V/7200[N3C]/80/90 (equivalent to american standard “K12”). Each bollard has an independent pump so that in the event of a control unit failure, the other bollards in the environment remain functional.

Operatorhydraulic bollard

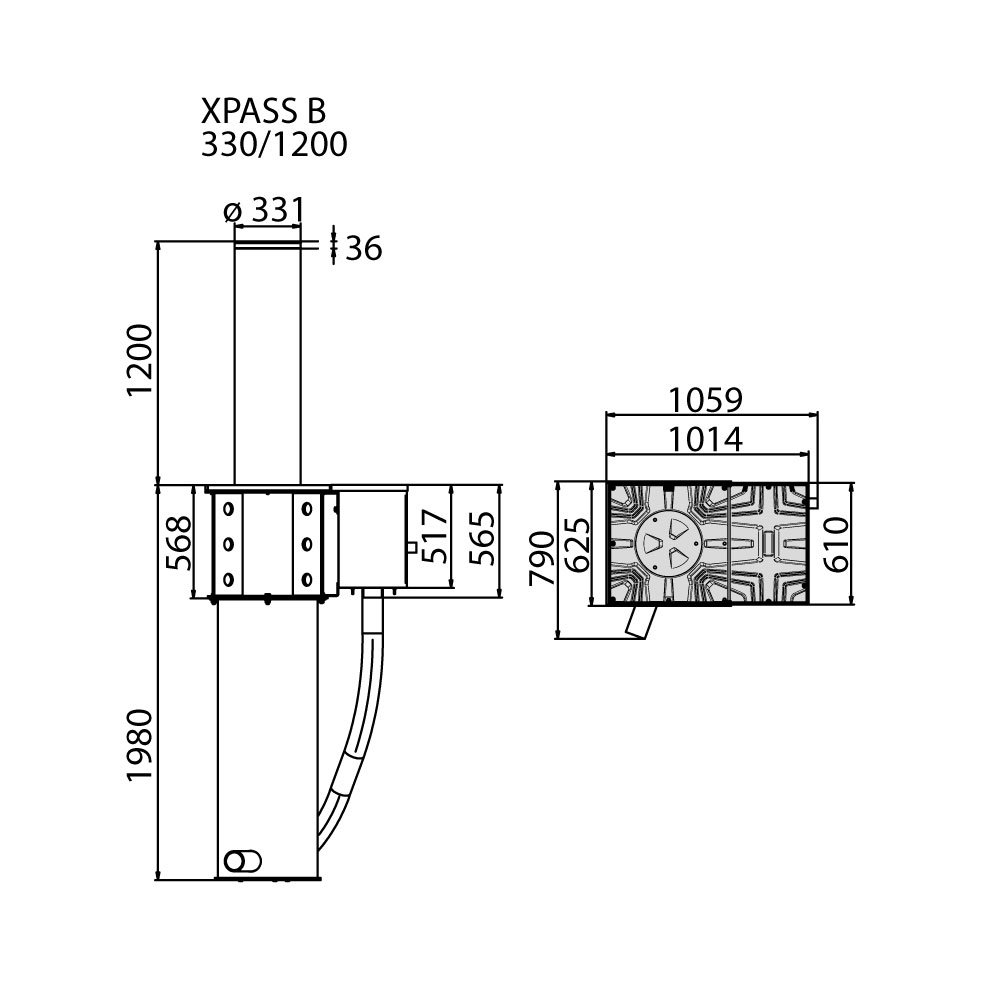

 Shaft height1200 mm
 Shaft diameter330 mm
 Rising timemax 5.3 sec
 Shaft treatment*RAL 7015 painted steel and reflective film h:100 mm
 Lowering time4 sec
 Control unitPERSEO CBE 230.P SD
 Break-in resistance2100000J
 Frequency of use2000 op/day
 Anti-terrorism reference standardIWA14-1:2013 V/7200[N3C]/80/90
 Type of limit switchreed magnetic sensor
 Manual operationreversible with mechanical key with no power
 Ambient conditions40°C +60°C
